Automated Manufacturing System

Automatic Rolled Sugar Cone Machine

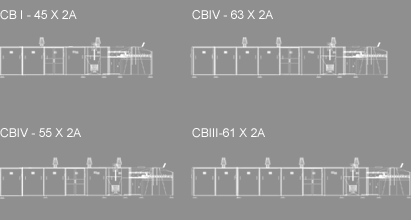

Model : CBIII-61 X 2A

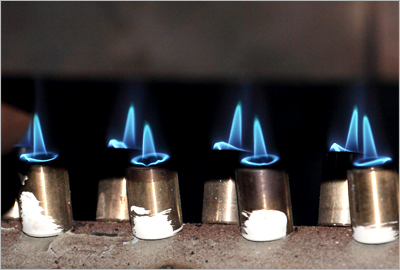

APPOX. GAS CONSUMPTION | LPG11-13KGS/HOUR
LNG17-19M3/HOUR
DRIVE MOTOR | 2 HP.
AIR BLOWER | 2 HP.

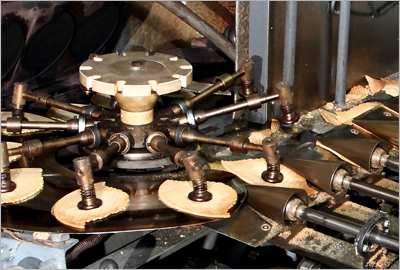

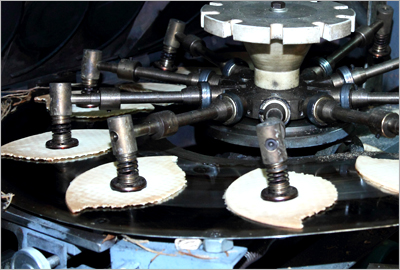

MOTORIZED ROLLED SYSTEM | 0.18 HP.
SUPER LARGE SIZED BAKING PLATE | 320 X 240 MM
BAKING PLATES | 61
ROLLING STATIONS | 24 ROLLING CORES
FROM SIZE | 110-120 MM LENGTH
CAPACITY | 6800-7200 PCS/HOUR
MACHINE MEASUREMENT | L11.80 x 2.25 x 1.73 METER
TOTAL WEIGHT | 5,800KGS
SHIPPING VOLUME | 36 CBM/40 FT CONTAINER
FULLY MECHANICAL OPERATING. LONG RUNNING LIFE PRODUCTION FOR ROLLED SUGAR CONE
Model : CBIV-55 X 2A

CAPACITY | 6,000-6,600 PCS/HOUR
MACHINE MEASUREMENT | L8.8 x 2.25 x 1.60 METER
TOTAL WEIGHT | 4,800KGS
Model : CBIV-63 X 2A

CAPACITY | 6,600-7,000 PCS/HOUR
MACHINE MEASUREMENT | L9.75 x 2.25 x 1.73 METER
TOTAL WEIGHT | 5,200KGS
Model : CBI-45 X 2A

APPOX. GAS CONSUMPTION | LPG6-7KGS/HOUR
LNG11-13M3/HOUR
DRIVE MOTOR | 1.5 HP.
AIR BLOWER | 1.5 HP.
MOTORIZED ROLLED SYSTEM | 0.18 HP.
